| Brand Name : | ZKMANET |
| Model Number : | ZKManet1433T |
| Certification : | CE, ISO9001 |
| Price : | USD 1699 per piece |
| Payment Terms : | T/T, Western Union, MoneyGram |
| Supply Ability : | 10000 pieces per year |
| Delivery Time : | 3-7 work days |
The ZKManet1433T is a COFDM wireless digital video transmitter specifically engineered for drone applications. Featuring cutting-edge COFDM and H.264 technologies, it facilitates the creation of reliable wireless video links in various environments, including high-speed mobile situations. Its compact design makes it perfectly suited for installation on drones.
Features
* Adopts COFDM modulation and H264/H265 compression
* Frequency 200MHz-2.7GHz customizable
* HDMI and CVBS dual video inputs
* 19-33dBm dynamic power adjustable
* Compact size and light weight
* Range up to 15 km(LOS)
* Support transparent data transmission
* Easy operation

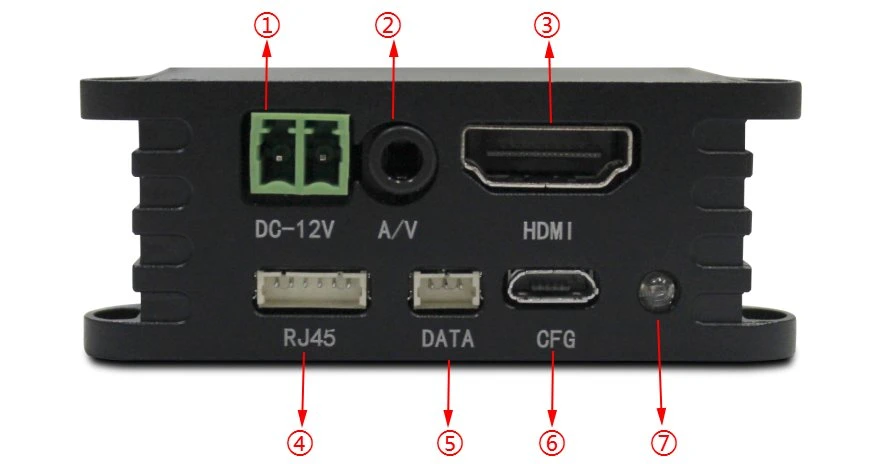

Front Panel
| Transmission Characteristics | |
| Modulation | COFDM |
| Modulation Type | QPSK(4QAM), 16QAM, 64QAM |
| Frequency | 200MHz-2.7GHz (Default 700MHz) |
| Transmit Power | 30dBm |
| RF Bandwidth | 2-8MHz |
| FEC | 1/2, 2/3, 3/4, 7/8 |
| Guard Interval | 1/4, 1/8, 1/16, 1/32 |
| Transmission Range | Air-to-ground up to 20km, LOS |
| Data Characteristics | |
| Video Input | HDMI: 1080p/1080i/720p/720i AV: 720x480/60i (NTSC), 720x576/50i |
| Video Compression | H.264 |
| RF Interface | SMA F head |
| Configuration | Using the USB programmer |
| Encryption | AES256 (user-defined password) |
| Electrical Characteristics | |
| Working Voltage | DC12V |
| Working Current | ≤1.2A (@12V) |
| Power Consumption | ≤14.37dBm |
| Physical Characteristics | |
| Weight | 109g |
| Dimensions | 77x54x23.5mm |
| Working Temp. | -20ºC~70ºC |
