33dBm Low Latency Range 30km Drone Data Link Video Transmitter

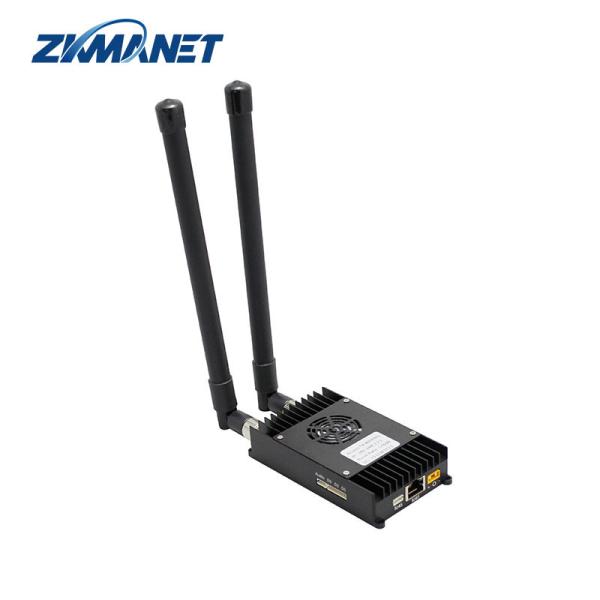

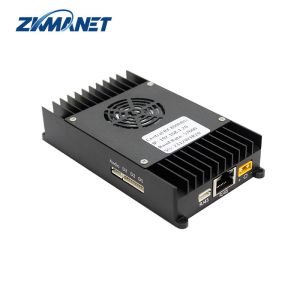

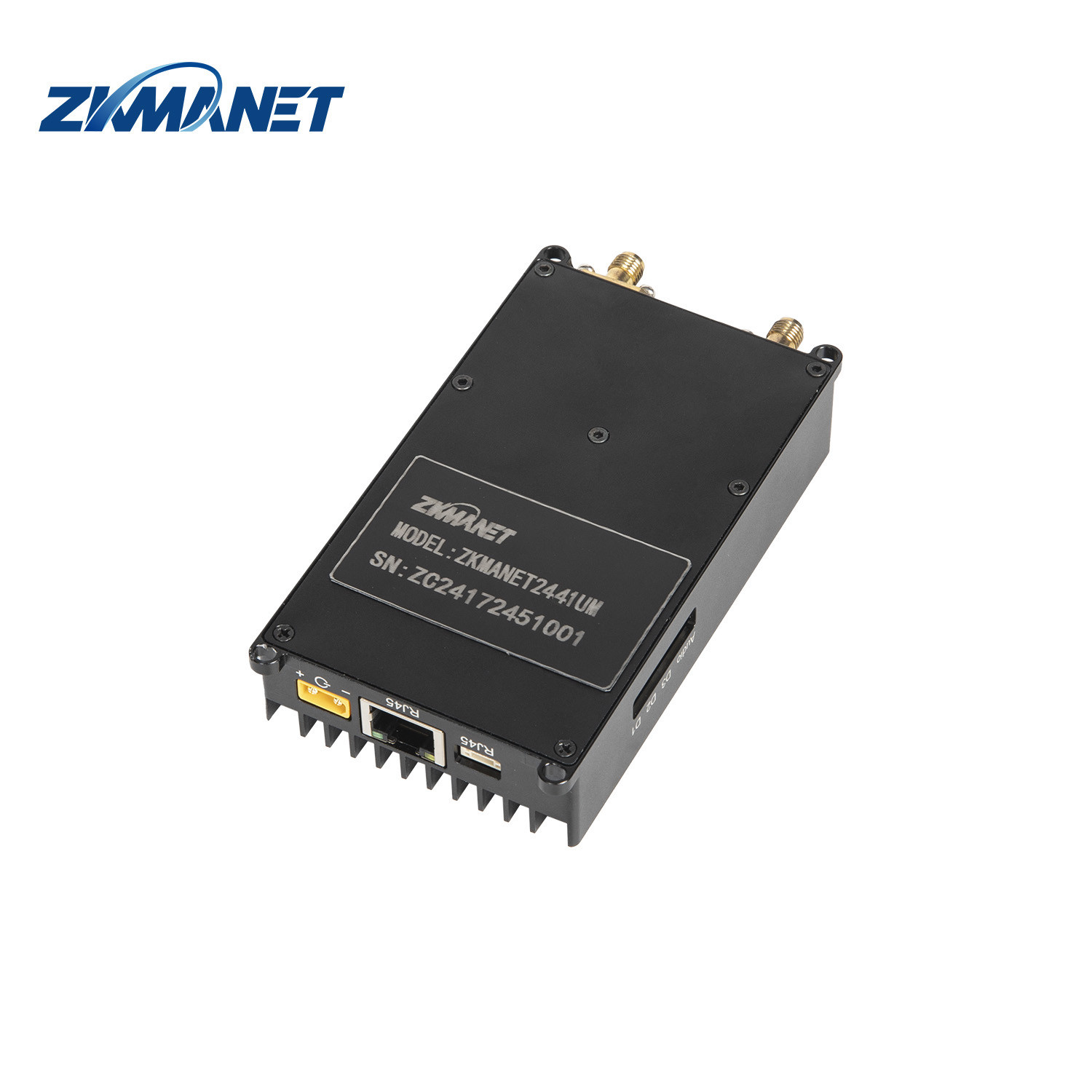

The ZKManet2441UM is a compact and portable airborne radio with HD and stable image quality. It adopts the current leading OFDM modulation technology, allowing for capturing high-quality images in high-speed motion and real-time transmission in non-line-of-sight (NLOS) conditions. Encryption is applied to the images and data during transmission, supporting a transmission rate of 30Mbps and a range of 30KM for air-to-ground transmission. It is well-suited for long-term and high-data-flow wireless transmission applications, such as UAVs, USVs, and robots.

* Supports 3 bands (800MHz/1.4GHz/2.4GHz)
* Supports TTL and RJ45 port
* Long Range up to 30km (LOS)
* Low latency and low power consumption
* IP transparent data transmission

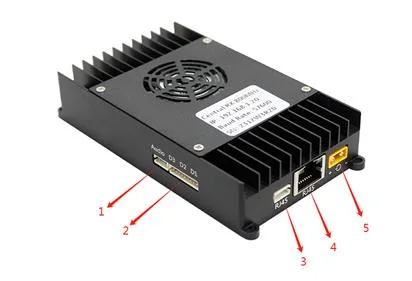

1. Audio Interface
2. RA232 Interface*3
3. RJ45 Interface-1
4. RJ45 Interface-2
5. Power Input Interface

1. Link Status Indicator - When the device works as an access node, if the connection with the central node is normal, the indicator will flash. When the device works as a central node, this indicator will be always on.
2. Signal Indicator
3. Power Indicator
4. RF Antenna-2
5. RF Antenna-1
